Understanding TLE8261E and Common Issues

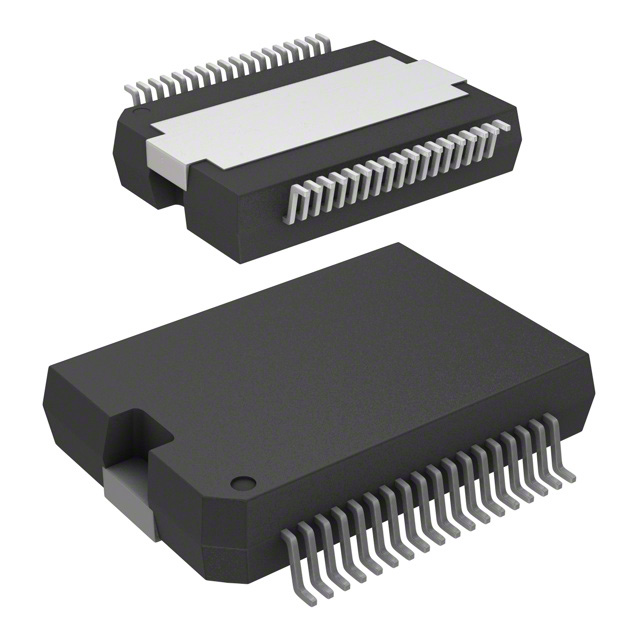

The Infineon Technologies TLE8261E is a Power ful and efficient system power management IC designed specifically for automotive applications. Known for its low power consumption, high integration, and ability to handle various tasks such as voltage regulation, protection, and monitoring, the TLE8261E has become a popular choice in modern automotive electronics. Whether it’s managing the battery voltage in a car or supplying stable power to critical electronic module s, this IC is a vital component in keeping systems running smoothly.
However, like any sophisticated piece of technology, the TLE8261E can encounter issues that affect its functionality and, by extension, the systems it powers. In this article, we will focus on the most common troubleshooting scenarios that engineers and technicians face when working with the TLE8261E, as well as practical solutions to resolve them.
1. Understanding the Role of TLE8261E in Automotive Systems
Before diving into troubleshooting, it’s essential to understand the role of the TLE8261E in automotive systems. The IC serves several key functions:
Voltage Regulation: It ensures that the voltage supplied to various components is stable, even when the car’s battery voltage fluctuates.
Power Sequencing: The TLE8261E is responsible for managing the order in which different systems in the car are powered up or down, which is crucial to prevent power surges or damage.
Protection Features: The IC includes built-in protections like overvoltage, undervoltage, and thermal shutdown to safeguard both the IC and the components it powers.
Diagnostics and Monitoring: The TLE8261E can monitor the system’s performance and report faults, providing valuable data to engineers.
Despite its robust design, issues can still arise due to incorrect configurations, external component failures, or environmental factors. Knowing how to diagnose and solve these problems is essential for maintaining the reliability of automotive electronics.
2. Common Troubleshooting Scenarios with TLE8261E
Scenario 1: Output Voltage Irregularities
One of the most common issues with the TLE8261E is irregular output voltage. This can manifest in several ways, such as voltage dips, spikes, or a failure to maintain the target voltage.
Possible Causes:
Incorrect Configuration: The output voltage could be incorrect if the feedback network is not set up correctly. This includes incorrect resistor values or wrong connections.
Faulty External Components: External components such as capacitor s or inductors might be damaged or degraded, affecting the performance of the IC.
Overload Conditions: A short circuit or excessive load can cause the IC to struggle in maintaining the desired output voltage.
Solution:
Check Feedback Network: Inspect the resistor divider and feedback paths to ensure they are correctly set up for the desired output voltage.
Inspect External Components: Verify that the capacitors, inductors, and any other external components connected to the IC are in good condition. Replace any that show signs of damage.
Measure Load Current: Ensure that the load connected to the TLE8261E is within the IC's rated capacity. If there’s an overload, adjust the load or add additional regulation to prevent current spikes.
Scenario 2: Overheating of the TLE8261E
Overheating is a serious issue for power management ICs like the TLE8261E. The IC includes thermal protection, but prolonged exposure to high temperatures can lead to failure or damage to surrounding components.
Possible Causes:
Insufficient Heat Dissipation: If the IC is not mounted properly or lacks adequate heat sinking, it may overheat.
High Current Draw: If the IC is powering too many components or high-power systems, it may exceed its thermal limit.
Ambient Temperature: In automotive environments, the temperature can vary greatly, and extreme heat may contribute to thermal stress on the IC.
Solution:
Improve Heat Dissipation: Ensure that the TLE8261E has adequate thermal management. This can include proper PCB layout with thermal vias, heat sinks, or even active cooling in extreme cases.
Limit Current Draw: Review the current demands of the system. If the IC is running near or above its maximum rated current, consider redistributing the load or using a more powerful IC.
Monitor Ambient Temperature: Ensure that the operating environment remains within the recommended temperature range for the IC. If necessary, use a temperature sensor to monitor and mitigate high-temperature conditions.
Scenario 3: Communication Failure or Fault Reporting Issues
The TLE8261E has diagnostic features that allow it to report faults such as overcurrent, undervoltage, and overvoltage conditions. However, in some cases, engineers may encounter communication failures, preventing them from receiving fault status or real-time monitoring data.
Possible Causes:
Faulty Communication Bus: The issue might lie with the communication interface between the TLE8261E and the microcontroller or diagnostic tool.
Incorrect Configuration: If the IC’s communication protocols are incorrectly configured (e.g., wrong baud rate or data format), it can result in failed communication.
Corrupted Data Registers: The internal fault registers of the TLE8261E may become corrupted due to power glitches or resets.
Solution:
Check Communication Lines: Inspect the physical communication lines for damage or interference. If using I2C or SPI, ensure that the clock and data lines are correctly connected.
Verify Configuration Settings: Double-check the configuration of the communication protocols, including baud rates, data formats, and addresses.
Reset the IC: In some cases, a full reset of the IC may resolve communication issues by clearing any corrupted registers or states.
Scenario 4: Overvoltage or Undervoltage Protection Triggers Unexpectedly
Overvoltage and undervoltage conditions are critical in automotive systems. The TLE8261E includes protection features to shut down or reduce output in these conditions. However, these protections may trigger unexpectedly due to a variety of reasons.
Possible Causes:
Faulty Input Voltage: The input voltage to the TLE8261E may be outside of the IC’s specified range, causing protection features to activate.
Incorrect Threshold Settings: The undervoltage or overvoltage protection thresholds may be set incorrectly, leading to false triggering.
Power Supply Noise: If the input power supply is noisy or unstable, it could cause voltage fluctuations that trigger the protection features.
Solution:
Check Input Voltage: Measure the input voltage to the TLE8261E to ensure that it is within the specified range. If it fluctuates or exceeds limits, adjust the power supply or add filtering.
Review Protection Thresholds: Double-check the settings for overvoltage and undervoltage protection. If necessary, adjust the thresholds to suit the system’s requirements.
Improve Power Supply Stability: Add filtering capacitors or use a more stable power supply to reduce noise that might be causing false triggering.
Advanced Troubleshooting Techniques for TLE8261E
In the second part of this article, we will discuss more advanced troubleshooting techniques for diagnosing and resolving issues with the TLE8261E. These techniques are useful for those working with complex systems or dealing with persistent issues that don’t have simple solutions.
Stay tuned for part 2, where we will cover in-depth strategies such as oscillographic analysis, power profiling, and leveraging advanced diagnostic tools for more effective troubleshooting.
End of Part 1.
