Introduction to TMS320F2808PZA and its Role in Motor Control

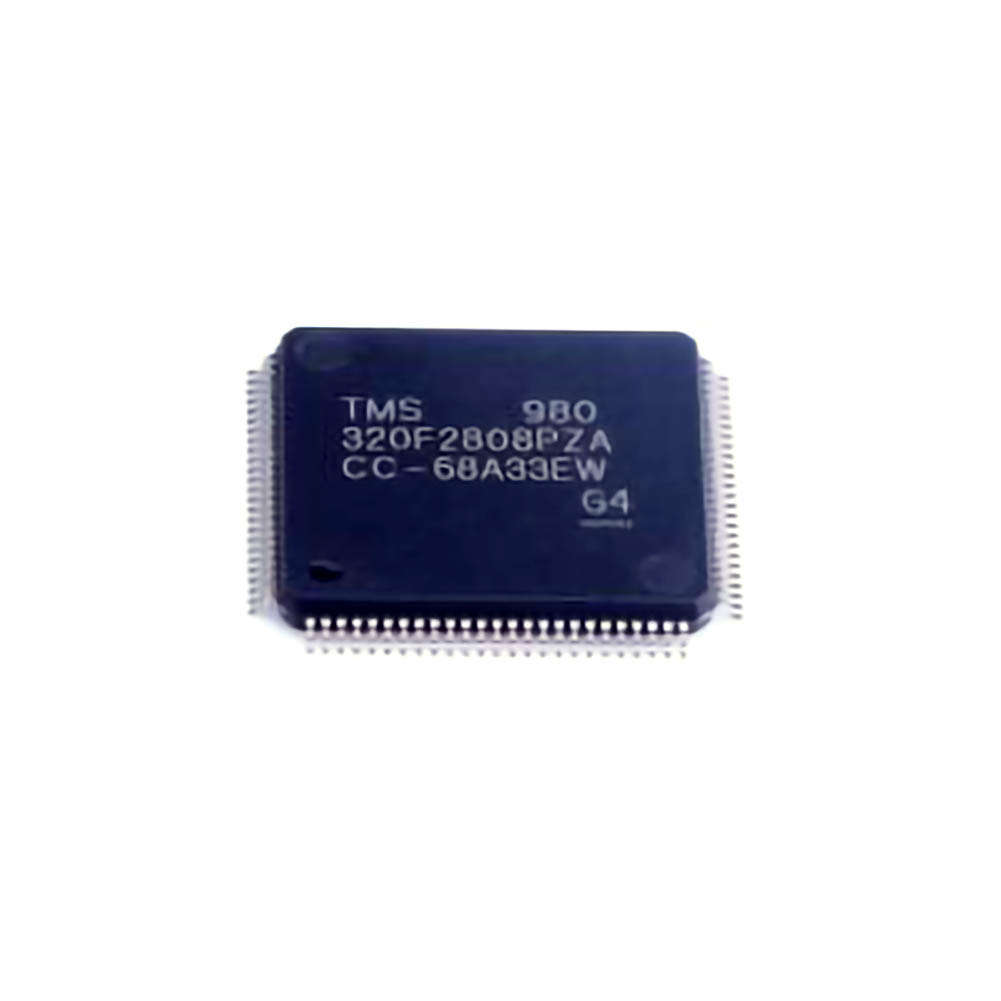

The TMS320F2808PZA, a member of Texas Instruments’ C2000™ family of digital signal processors ( DSP s), is a Power ful embedded system that has earned a reputation for its robust capabilities in real-time processing, especially in motor control and DSP development applications. Designed to meet the demanding needs of modern embedded systems, the TMS320F2808PZA is widely used in applications where precise control of motors and efficient signal processing are critical.
In motor control, the precision and speed with which a DSP can process signals directly impacts the performance of the motor. The TMS320F2808PZA has been engineered to offer a unique combination of high-speed processing, advanced peripherals, and specialized motor control algorithms, making it an ideal choice for applications like industrial motor drives, robotics, and electric vehicles.
Key Features of TMS320F2808PZA:
High Processing Speed: With a clock frequency of up to 60 MHz, the TMS320F2808PZA enables real-time processing of complex algorithms, which is vital for motor control systems that require fast decision-making to maintain precise speed and torque.
Real-Time Control Capabilities: The TMS320F2808PZA’s advanced control features, such as pulse-width modulation (PWM) generation, make it an ideal candidate for motor control applications. These control features are critical for applications requiring accurate torque, speed, and position control.
Integrated Peripherals: The processor comes equipped with integrated peripherals, including analog-to-digital converters (ADC), timers, and Communication s interface s, which streamline the development of sophisticated motor control systems.
Low Power Consumption: The TMS320F2808PZA is optimized for low power consumption, ensuring that applications can operate for extended periods without sacrificing performance. This is especially useful in battery-powered systems like electric vehicles and portable robotics.
Application Cases of TMS320F2808PZA in Motor Control
One of the most notable application areas for the TMS320F2808PZA is in motor drive control systems, which can range from industrial automation equipment to consumer appliances. Let’s explore some specific motor control applications that benefit from the DSP’s capabilities.
1. Industrial Motor Drives:
In industrial settings, controlling large motors accurately and efficiently is essential for machines that drive conveyors, pumps, and other critical systems. The TMS320F2808PZA can be programmed to control the speed, direction, and torque of motors using field-oriented control (FOC) or direct torque control (DTC). These algorithms require real-time processing of feedback signals from the motor to adjust parameters like voltage and current instantaneously.
For example, in a conveyor system used in manufacturing, the DSP ensures that the conveyor belt runs at a precise speed, even under varying load conditions. If the load increases, the DSP adjusts the motor’s power input immediately to prevent stalling, improving operational efficiency and minimizing downtime.
2. Electric Vehicle (EV) Motors:
The growing demand for electric vehicles (EVs) has spurred innovations in motor control technology, and the TMS320F2808PZA is at the forefront of this development. EVs require high-efficiency motor control to maximize battery life and optimize vehicle performance. Using the TMS320F2808PZA, engineers can develop highly efficient motor controllers that offer smooth acceleration, regenerative braking, and precise speed control. The processor’s ability to handle complex algorithms for torque estimation, sensorless control, and power Management ensures that EV motors operate at peak efficiency under varying driving conditions.
3. Robotics:
In the world of robotics, precise motor control is fundamental. Robots often need to execute delicate movements and adjust their actions based on feedback from sensors. The TMS320F2808PZA is commonly used in robotic motor control systems because of its real-time processing capabilities, enabling fast and accurate adjustments. Whether it's a robotic arm in an assembly line or a drone in flight, the DSP ensures that motors react instantly to changes in direction or speed, providing smooth and reliable operation.
DSP Development and the TMS320F2808PZA in Real-Time Applications
In addition to its extensive use in motor control applications, the TMS320F2808PZA is also highly regarded for its role in digital signal processing (DSP) development. Digital signal processing refers to the manipulation of signals—such as Audio , video, and sensor data—in digital form. Many real-time applications, including audio processing, communications, and sensor data acquisition, rely on DSPs like the TMS320F2808PZA for their ability to process large amounts of data quickly and efficiently.
DSP Development with TMS320F2808PZA
Signal Filtering and Data Transformation:
DSPs like the TMS320F2808PZA excel at filtering and transforming signals in real time. This is particularly valuable in applications like sensor data acquisition, where raw data from sensors needs to be filtered and processed before it can be used for decision-making. For example, in industrial automation systems, sensors that monitor machine vibrations or temperature may generate noisy data that must be cleaned up before being used to control a process. The TMS320F2808PZA can implement algorithms like Kalman filtering or low-pass filters to remove unwanted noise and provide more accurate data.
Audio and Video Signal Processing:
The TMS320F2808PZA also finds applications in audio and video signal processing, where it can be used to improve the quality of sound and visuals. For instance, in home theater systems, audio DSP chips can enhance the sound quality by adjusting volume, tone, and equalization in real time. Similarly, video DSPs can be used in video streaming platforms to optimize the quality of images by reducing distortion or compression artifacts. The DSP’s processing speed and flexibility make it ideal for applications that require real-time adjustments to high-bandwidth signals.
Wireless Communication:
In wireless communication systems, the TMS320F2808PZA can handle tasks such as signal modulation, error correction, and data encoding. Wireless communication often demands precise signal processing to ensure that data can be transmitted reliably across channels that are subject to interference. DSPs are integral to ensuring that signals are modulated to the appropriate frequency, coded for error correction, and demodulated at the receiver’s end.
Benefits of Using TMS320F2808PZA for DSP Development
The TMS320F2808PZA offers several advantages for engineers working in the field of DSP development:
Optimized for Real-Time Processing:
The TMS320F2808PZA is optimized for real-time processing, which is essential for applications that rely on rapid responses to changing conditions. This real-time processing capability is essential in applications such as motor control, sensor data processing, and signal filtering.
Scalability:
With its wide range of peripherals and interfaces, the TMS320F2808PZA is scalable for a wide variety of applications. Developers can integrate additional sensors, communication module s, or Power Management systems as needed, making the DSP highly adaptable to different use cases.
Efficient Power Management:
Power efficiency is another key benefit of the TMS320F2808PZA, particularly in battery-powered devices. The processor’s low-power design helps extend the operational life of systems, which is critical in applications such as electric vehicles, drones, and portable robotics.
Cost-Effectiveness:
Compared to more general-purpose processors or microcontrollers, the TMS320F2808PZA offers specialized features for motor control and DSP applications at a competitive price point. For developers, this makes it an attractive option for cost-sensitive applications without sacrificing performance.
Conclusion: A Versatile DSP for Motor Control and Beyond
The TMS320F2808PZA is a versatile and high-performance DSP that plays a pivotal role in modern motor control and digital signal processing applications. Its ability to handle complex algorithms in real time makes it an indispensable tool in industries ranging from robotics and industrial automation to electric vehicles and wireless communication.
With its powerful processing capabilities, real-time control features, low power consumption, and extensive peripheral integration, the TMS320F2808PZA empowers developers to create more efficient, responsive, and intelligent systems. Whether it's driving the precise movement of a robotic arm, controlling the speed of an electric motor, or processing complex sensor data, the TMS320F2808PZA stands at the forefront of DSP innovation, offering a bright future for applications in motor control and beyond.
