Introduction to the SN74CBTLV3257PWR and Common Troubleshooting Issues

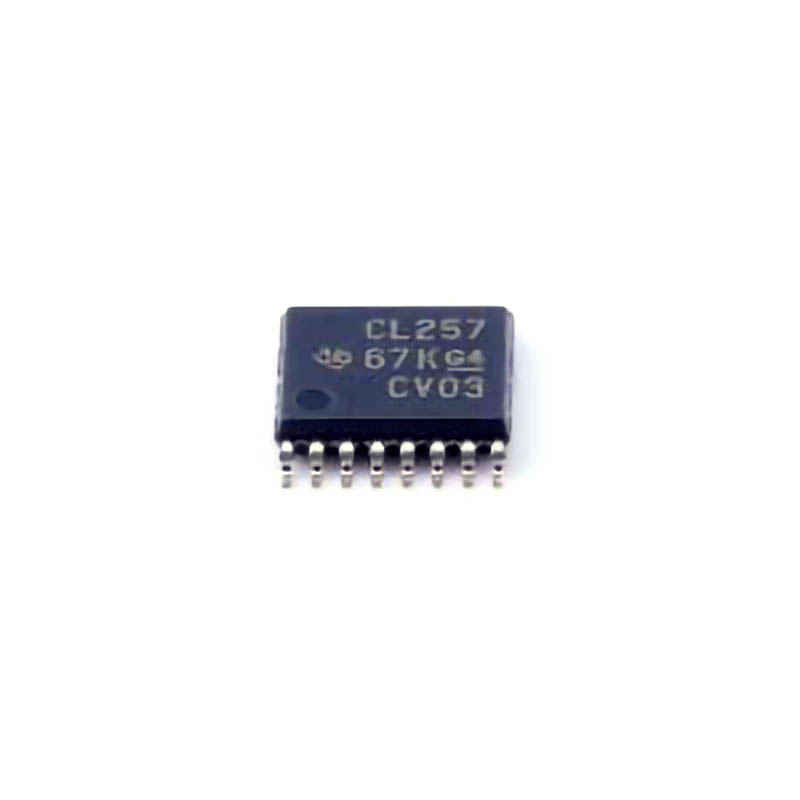

The SN74CBTLV3257PWR is a highly reliable and commonly used multiplexer in modern electronic systems. It is a part of Texas Instruments' family of Multiplexers and de Multiplexers , designed specifically for high-speed digital signal switching and routing applications. With its 8-bit multiplexing capability, low Power consumption, and high-speed operation, it finds widespread use in communication systems, data acquisition systems, and other electronic devices that require efficient signal Management .
Despite its many advantages, like any electronic component, the SN74CBTLV3257PWR may experience issues during its lifecycle, especially if it is not used or installed correctly. Troubleshooting these problems efficiently is crucial to maintaining the stability and performance of your system. In this first part, we will discuss some of the most common issues you might encounter with the SN74CBTLV3257PWR multiplexer and their potential solutions.
1. Power Supply Issues
One of the first troubleshooting steps when dealing with the SN74CBTLV3257PWR is to examine the power supply. This multiplexer IC operates at a wide voltage range (2.3V to 3.6V), and any instability or incorrect voltage levels can cause malfunctions or erratic behavior.
Solution:
Check the power voltage: Ensure that the power supply provides a stable voltage within the specified range for the device (2.3V to 3.6V).
Inspect for voltage spikes or drops: Use an oscilloscope to monitor the voltage supply. Fluctuations in the power supply can disrupt the normal functioning of the multiplexer and lead to unpredictable outputs.
Check ground connections: Loose or inadequate grounding can cause noise or instability in the system, so ensure the ground connections are solid.
2. Improper Pin Connections
The SN74CBTLV3257PWR comes in a 28-pin package, and improper connections of control pins (S1, S0) or input/output (I/O) pins can cause the IC to behave incorrectly. In some cases, users may incorrectly configure the multiplexer's address lines or enable control signals.
Solution:
Verify pin connections: Double-check all pin connections against the datasheet to make sure that each pin is correctly connected to its corresponding circuit.
Ensure proper logic levels on control pins: The selection pins (S1 and S0) should be connected to logic levels that match the desired channel selection for the multiplexer.
Check for open circuits: Ensure that no input or output pins are left floating, as this can result in unpredictable behavior.
3. Signal Integrity Issues
Multiplexers like the SN74CBTLV3257PWR are designed to handle high-speed signals, but poor signal integrity can still be a problem if the PCB layout or external circuit design is inadequate. Crosstalk, reflections, and signal degradation may occur if the traces are improperly routed or if there is excessive noise in the circuit.
Solution:
Proper PCB layout: Ensure that signal traces are short, direct, and properly shielded from noisy components. Minimize the use of vias in the signal path and keep the signal traces away from high-current paths.
Use of decoupling capacitor s: Decoupling capacitors placed close to the IC can help stabilize the voltage supply and reduce noise. Typically, a 0.1µF ceramic capacitor is recommended near the power supply pin.
Check for reflection and termination: For high-speed signal lines, make sure that appropriate termination resistors are used to prevent reflections that could degrade signal integrity.
4. Incorrect Selection of Channels
A common issue when using the SN74CBTLV3257PWR is incorrectly selecting the active channel. This can occur due to improper logic levels on the selection pins (S1, S0) or issues in the control circuitry.
Solution:
Check the logic for channel selection: Ensure that the selection pins (S1 and S0) are configured to select the correct channel. Refer to the truth table in the datasheet to confirm the logic levels that correspond to the desired input/output path.
Use pull-up/pull-down resistors: If the control lines are floating, use appropriate pull-up or pull-down resistors to ensure they have a defined logic level.
Advanced Troubleshooting and Maintenance Tips for the SN74CBTLV3257PWR
Now that we have covered some of the fundamental troubleshooting steps for the SN74CBTLV3257PWR multiplexer, it is important to dive deeper into more advanced troubleshooting techniques and preventive measures. By being proactive and identifying potential issues before they escalate, you can extend the life and performance of this versatile IC.
5. Thermal Management Issues
Thermal management plays a crucial role in ensuring the longevity and reliability of the SN74CBTLV3257PWR multiplexer. High operating temperatures can lead to degradation of the component over time, causing failure or unpredictable behavior.
Solution:
Monitor the operating temperature: Use thermal sensors or infrared thermometers to measure the temperature of the IC during operation. Ensure that the temperature stays within the recommended range specified in the datasheet.
Enhance heat dissipation: If the IC operates in a high-power environment, consider adding heat sinks or improving airflow around the device. Using a larger PCB with more copper area for heat dissipation can also help manage thermal load.
Proper ambient temperature: Ensure the device operates within the recommended ambient temperature range, typically between 0°C and 70°C. Avoid exposing the device to extreme environmental conditions.
6. Output Driving Capability and Overloading
The SN74CBTLV3257PWR multiplexer is designed to drive certain loads, but if it is tasked with driving a load that exceeds its specifications, it may fail or experience degraded performance. The I/O pins are capable of sourcing or sinking a limited current, and overloading them can damage the device.
Solution:
Check the load on I/O pins: Make sure the output load connected to the multiplexer does not exceed the specified current ratings. Use buffers or drivers if higher current driving capability is needed.
Use series resistors: Placing resistors in series with the output can limit the current and protect the multiplexer from overloading.
7. Interfacing with Other Logic Families
The SN74CBTLV3257PWR is typically used in systems with other logic families. Compatibility between different logic families can sometimes cause issues, particularly with voltage levels, logic thresholds, or timing mismatches.
Solution:
Check voltage levels: Ensure that the logic levels of the connected devices match the requirements of the SN74CBTLV3257PWR. If necessary, use level shifters to ensure proper voltage compatibility between devices.
Ensure timing compatibility: The SN74CBTLV3257PWR operates at a high switching speed, so make sure that any other devices in the system are capable of handling the signal timing without causing glitches or delays.
8. Device Fault Isolation
When troubleshooting complex systems that include the SN74CBTLV3257PWR multiplexer, it can sometimes be difficult to isolate the root cause of a problem. Isolating the device and testing it independently can help pinpoint the source of issues.
Solution:
Use a test bench: Set up a test bench where the multiplexer is tested with known good components in a controlled environment. This will help isolate whether the issue is with the multiplexer itself or with other parts of the system.
Use diagnostic tools: Utilize tools such as logic analyzers, oscilloscopes, and signal generators to monitor and analyze the device’s behavior. These tools can help you identify timing issues, signal integrity problems, or logic faults.
9. Preventive Maintenance
To avoid troubleshooting issues altogether, preventive maintenance is essential. Regularly inspect the IC and surrounding components to ensure everything is operating as expected.
Solution:
Regular testing: Periodically check the performance of the device under normal operating conditions.
Software updates: If your application involves firmware or software that controls the multiplexer, ensure that it is updated to address any known bugs or optimizations.
Protective circuits: Add protective elements, such as transient voltage suppressors or current-limiting resistors, to shield the IC from unexpected electrical surges or voltage spikes.
Conclusion
The SN74CBTLV3257PWR is a robust and reliable multiplexer with a wide range of applications, but like all electronic components, it is not immune to issues. Whether it’s a power supply problem, incorrect pin connections, signal integrity issues, or thermal management challenges, being proactive in troubleshooting and maintenance can help keep the device running smoothly for years to come. By following the solutions outlined in this article, you can troubleshoot and resolve common problems with confidence, ensuring the longevity and optimal performance of your multiplexer.
