Introduction to MB85RS256BPNF-G-JNERE1 and Common Issues

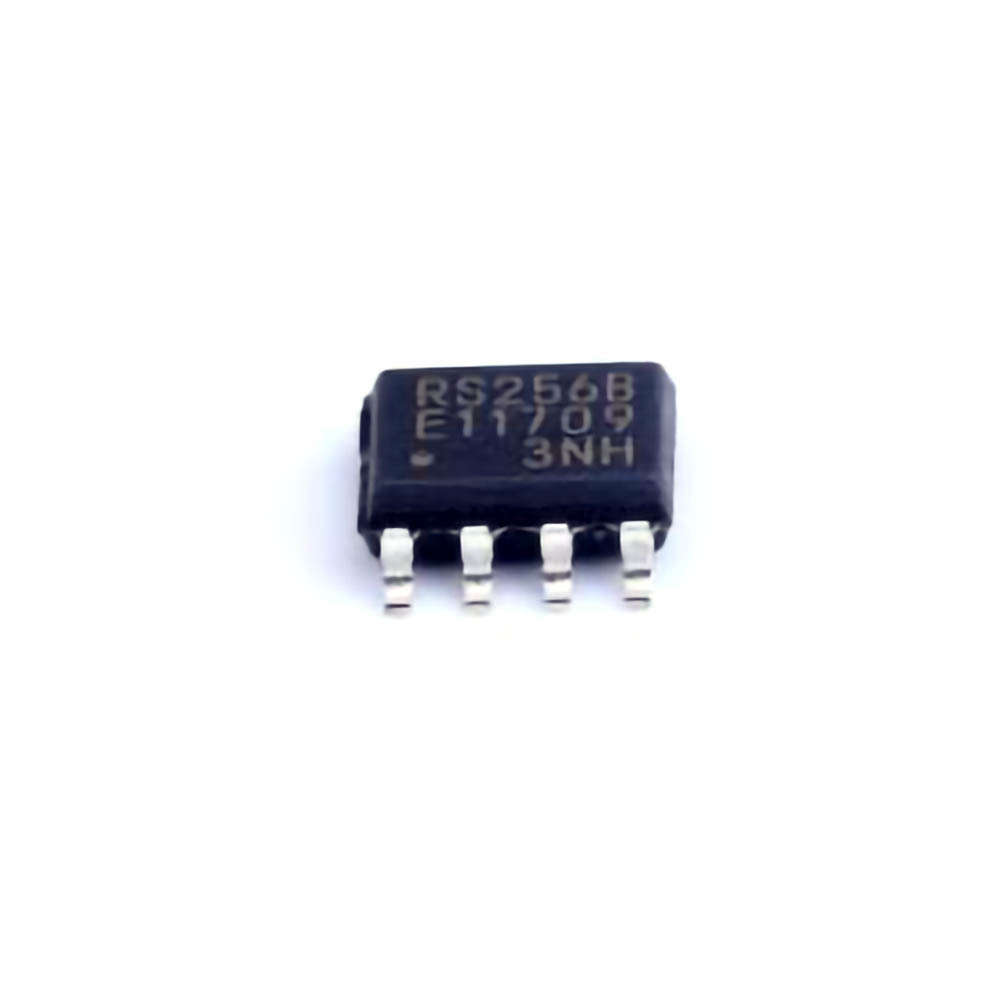

The MB85RS256BPNF-G-JNERE1 is a Power ful and highly reliable ferroelectric random- Access memory (FRAM) device produced by Fujitsu. With a storage capacity of 256Kb, this device is used in a variety of embedded systems, industrial applications, and consumer electronics. It offers several advantages over traditional EEPROM and flash memory, including faster write speeds, greater endurance, and lower power consumption. Despite these advantages, users may occasionally encounter issues with the MB85RS256BPNF-G-JNERE1, just like any other complex electronic component.
In this article, we will take a detailed look at the common troubleshooting scenarios users may face when working with this FRAM device and offer solutions to help you resolve them effectively. Whether you're dealing with read/write errors, Communication problems, or power issues, understanding the root causes and how to fix them is essential for maintaining the device's performance.
1. Device Not Recognized by the System
One of the most common problems that users encounter when working with the MB85RS256BPNF-G-JNERE1 is the device not being recognized by the host system. This issue can be related to several factors such as improper wiring, power supply issues, or incorrect software configuration. Let's dive into some common causes and how to address them:
Possible Causes:
Improper Wiring or Connection: If the FRAM device is not connected correctly to the system, it may not be detected. Ensure that the connections to the I2C or SPI bus are correct, depending on the configuration used. Check for loose connections, damaged wires, or incorrect pinouts.
Power Supply Problems: The MB85RS256BPNF-G-JNERE1 requires a stable power supply for proper operation. If the device is not receiving sufficient power, it may not initialize or communicate properly with the system. Check the power source and make sure the voltage levels match the required specifications (typically 2.7V to 3.6V).
Incorrect Software Configuration: Ensure that the system firmware or driver software is configured to communicate with the FRAM device. If you are using I2C or SPI communication, verify that the correct address and communication settings are being used.
Solution:
Double-check the wiring and connections according to the device's datasheet.
Test the power supply and verify that the device receives the correct voltage.
Review the system's software configuration, and ensure that the correct interface (I2C/SPI) and address are being used.
2. Data Corruption or Write Failures
Another issue that can arise with FRAM devices is data corruption or write failures. The MB85RS256BPNF-G-JNERE1 is designed for high-endurance applications, but certain factors can cause data integrity problems, particularly when writing data.
Possible Causes:
Improper Write Timing : FRAM devices have specific timing requirements for writing data. If these timings are not adhered to, the write operation may fail, leading to data corruption.
Voltage Fluctuations: Voltage fluctuations or noise on the power line can result in failed write operations, especially when data is being written during power transients.
Software Bugs: In some cases, software bugs can cause incorrect write operations. For instance, writing data to the wrong address or sending incorrect commands could result in data corruption.
Solution:
Review the timing diagrams provided in the datasheet for the MB85RS256BPNF-G-JNERE1 and ensure that your system is adhering to the specified write timings.
Use a stable power supply with proper decoupling capacitor s to minimize voltage fluctuations.
Check for any software bugs or misconfigurations that could lead to improper data writes.
3. Communication Errors (I2C/SPI)
Communication errors are another common issue that users experience with the MB85RS256BPNF-G-JNERE1, particularly when using I2C or SPI protocols for data transfer. Communication failures can manifest as incomplete data reads, wrong data being returned, or no response at all from the device.
Possible Causes:
Bus Conflicts: If other devices on the I2C or SPI bus are not properly configured, it can lead to bus contention and communication issues with the FRAM device.
Incorrect Addressing: The I2C or SPI address used to communicate with the MB85RS256BPNF-G-JNERE1 must be correctly specified in both hardware and software. An incorrect address will prevent the device from responding to read or write commands.
Signal Integrity Issues: In some cases, poor signal integrity due to long wiring or high-speed communication can cause data corruption during transmission, especially with the I2C bus.
Solution:
Make sure that there are no address conflicts between the MB85RS256BPNF-G-JNERE1 and other devices on the same bus.
Verify that the correct I2C or SPI address is being used in both the hardware and software.
For I2C, consider using pull-up resistors to ensure proper signal levels, and keep wiring lengths short to reduce signal degradation.
Advanced Troubleshooting and Solutions
While the basic troubleshooting steps outlined in Part 1 cover the most common issues with the MB85RS256BPNF-G-JNERE1, more advanced problems can sometimes arise. These issues may require deeper analysis or more specialized solutions. In this section, we will explore advanced troubleshooting methods and solutions for handling complex problems.
4. Inconsistent Power Supply or Power-Up Behavior
The MB85RS256BPNF-G-JNERE1 is designed to operate within a specific power range, and fluctuations in power can lead to erratic behavior or failure to initialize properly. Inconsistent power supply or improper power-up sequencing can cause the device to malfunction, even if it appears to be connected and configured correctly.
Possible Causes:
Power Supply Noise: If the power supply is noisy or unstable, it can affect the device's performance, especially during read/write operations.
Improper Power-Up Sequence: In certain systems, the power-up sequence must be carefully controlled. If the FRAM device is powered up before other components in the system are ready, or if the power-down sequence is abrupt, it can cause errors.
Solution:
Use a low-noise power supply and ensure proper decoupling capacitors are placed close to the device for voltage stabilization.
Review the power-up and power-down sequences to ensure that the device is powered correctly and in the right sequence relative to other components in the system.
5. Overwriting Data During Concurrent Access
If the MB85RS256BPNF-G-JNERE1 is being accessed by multiple processors or devices concurrently, there is a risk of overwriting data or causing conflicts. Since FRAM is a non-volatile memory technology, the data should persist even in the event of power loss, but simultaneous access from multiple sources can still result in data corruption.
Possible Causes:
Simultaneous Writes: If multiple components are attempting to write data to the same address in the FRAM at the same time, there can be a conflict that results in incorrect data being stored.
Lack of Synchronization: When multiple systems are accessing the same memory device, proper synchronization techniques must be employed to avoid race conditions or conflicts.
Solution:
Implement software-based locking mechanisms or use hardware controls to ensure that only one device writes to the memory at any given time.
Ensure that access to the FRAM device is properly synchronized across all components that require data storage.
6. Unexpected Power Loss or Reset
Unexpected resets or power losses can also cause issues with FRAM devices like the MB85RS256BPNF-G-JNERE1. Although FRAM is designed to be resistant to data loss during power-down events, sudden resets or power interruptions may cause incomplete data writes or corruption if the device is in the middle of an operation.
Possible Causes:
Power Supply Instability: Power loss or interruptions during critical write operations can lead to data loss or corruption.
Improper Reset Handling: If the system is not designed to handle resets properly, it could result in the FRAM device being left in an inconsistent state after a reset or power cycle.
Solution:
Ensure that the power supply is stable and has backup mechanisms in place (e.g., capacitors or batteries) to maintain power during brief interruptions.
Implement proper reset and initialization routines to ensure the FRAM device is correctly re-initialized after a reset or power cycle.
Conclusion
The MB85RS256BPNF-G-JNERE1 is a robust and reliable FRAM device that can provide superior performance in embedded systems. However, as with any electronic component, it is not immune to issues. Understanding the common causes of problems and implementing the right troubleshooting strategies is key to ensuring the longevity and reliability of the device.
By carefully checking wiring, power supply stability, communication protocols, and software configurations, you can resolve most of the issues that might arise during operation. For more advanced issues like concurrent access problems, power interruptions, or device resets, specialized techniques such as synchronization, proper power management, and error handling can help keep the system running smoothly.
With the knowledge and solutions presented in this article, you are now better equipped to tackle any challenges that come with working with the MB85RS256BPNF-G-JNERE1, ensuring optimal performance and reliability in your applications.
