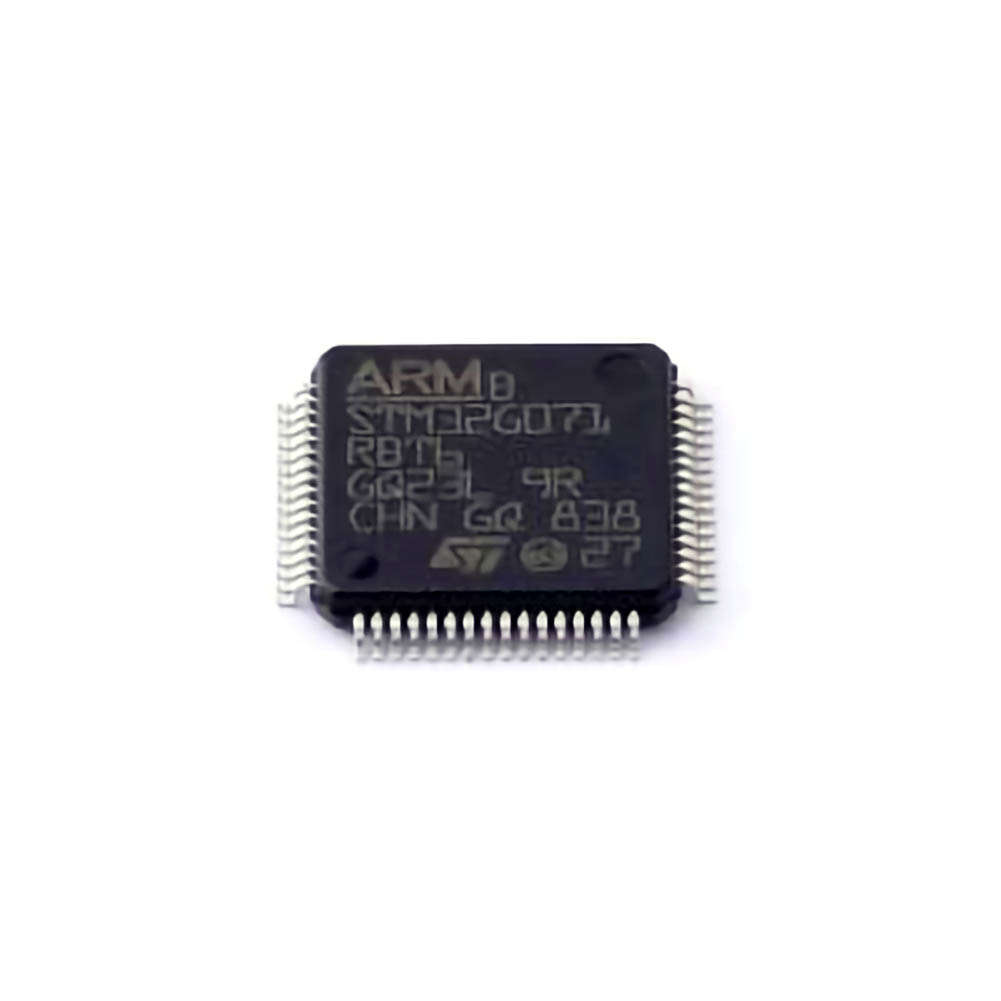

Common Troubleshooting Issues and Solutions for STM32G071RBT6
The STM32G071RBT6 is a Power ful microcontroller from STMicroelectronics, designed for embedded systems with robust performance features. While this chip is highly reliable, like any complex technology, users may encounter issues that hinder its functionality. These issues could stem from various sources, including hardware conflicts, software bugs, and even environment-related factors. This article will explore common problems users face when working with the STM32G071RBT6 and provide practical solutions.
1.1 Power Supply Problems
Power issues are one of the most common causes of failure in microcontroller-based designs. The STM32G071RBT6 requires a stable power supply to operate reliably, and issues like undervoltage, overvoltage, or noise can cause the microcontroller to behave unpredictably.
Symptoms:
The microcontroller doesn't power on or resets intermittently.
Erratic behavior or unexpected shutdowns during operation.
Peripheral module s not responding correctly.
Solution:
To avoid power-related issues, ensure that the power supply voltage falls within the specified range (2.7V to 3.6V). Noise in the power supply can also affect performance, so adding decoupling capacitor s (e.g., 100nF ceramic capacitors) close to the power pins of the STM32G071 can help reduce power noise. Additionally, verify that the current supplied is adequate for the entire system, as peripherals such as sensors, Communication modules, and display screens can increase the load.
1.2 Incorrect Clock Configuration
Incorrect clock configuration is another common issue when using the STM32G071RBT6. The STM32 series supports a variety of clock sources, including the internal 8 MHz RC oscillator (HSI) and external crystal oscillators (HSE). Incorrectly configured clocks can lead to the microcontroller running at the wrong speed, causing timing issues, malfunctions in communication, or system crashes.
Symptoms:
System clock running slower or faster than expected.
Communication failures in peripherals such as UART, I2C, SPI, etc.
Timer-based functions not working correctly.
Solution:
To ensure the STM32G071 is running at the correct clock speed, double-check the clock configuration in your firmware. Make sure you correctly set the PLL (Phase-Locked Loop) and other settings in the STM32CubeMX or direct register configuration. If using an external oscillator, verify that it is functioning correctly. Sometimes, changing the clock source or switching to a more stable external crystal can resolve timing-related issues.
1.3 Boot Mode and Flash Memory Issues
Another common issue is improper boot mode configuration, particularly when the microcontroller does not boot from Flash memory as expected. The STM32G071RBT6 supports multiple boot options, such as booting from Flash, system memory, or RAM. Incorrect settings can result in the microcontroller not initializing or jumping to the wrong part of memory.
Symptoms:
The microcontroller doesn't start the application.
No output on UART, LED s, or other interface s.
A system crash after reset.
Solution:
To resolve boot mode issues, check the BOOT0 and BOOT1 pins, as these determine where the microcontroller will start execution from. If you're programming the STM32G071 via JTAG or SWD, ensure the correct boot mode is selected. Also, make sure that the Flash memory is properly programmed with valid firmware. If using STM32CubeMX for project generation, verify the startup configuration to ensure that the microcontroller boots from the correct memory region.
1.4 Debugging with STM32CubeIDE or External Debuggers
When the microcontroller is not responding, debugging is a critical step to understanding the root cause. STM32CubeIDE or external debugging tools like ST-Link and J-Link can be used to identify software and hardware issues. However, common mistakes in setup can lead to unsuccessful debugging sessions.
Symptoms:
STM32CubeIDE cannot connect to the microcontroller.
Breakpoints or step-through debugging not functioning as expected.
Unexpected resets or lockups during debugging.
Solution:
Check the connection between the microcontroller and the debugger. Ensure that the SWD or JTAG pins are correctly connected to the debugger. If you are using STM32CubeIDE, ensure that the firmware on the STM32G071 is not causing a hard fault or entering a low-power state that disables debugging. Make sure that the correct debug interface is selected in STM32CubeMX and that the debugger is properly recognized by the IDE.
1.5 Communication and Peripherals Not Functioning
STM32G071RBT6 is equipped with a variety of communication peripherals, including UART, SPI, I2C, and CAN. However, users may face issues when these peripherals do not function as expected, often due to misconfigurations or hardware conflicts.
Symptoms:
UART communication failure (e.g., no data transmitted or received).
I2C devices not responding.
SPI communication errors or corrupted data.
Solution:
For UART, verify the baud rate and ensure that both ends of the communication (e.g., the STM32G071 and another device) are set to the same speed. Check the TX/RX pins for proper routing and ensure that the voltage levels are compatible between devices.
For I2C, make sure that the pull-up resistors on the SDA and SCL lines are of the correct value (usually 4.7kΩ to 10kΩ). Also, check the addresses of connected devices, as incorrect addressing can cause communication failures.
For SPI, ensure that the chip select (CS) signal is managed properly and that the timing of clock polarity and phase (CPOL, CPHA) matches the specifications of the peripheral device.
1.6 Software Library and HAL Issues
Many STM32 developers rely on the STM32Cube HAL (Hardware Abstraction Layer) for low-level drivers. However, using the wrong version of the HAL or misusing the HAL functions can lead to software bugs, instability, or unexpected behavior.
Symptoms:
Unstable system behavior or crashes.
Unresponsive peripherals, even though the hardware is correct.
Incorrect interrupt handling.
Solution:
Ensure that you are using the correct version of the HAL that matches the STM32G071RBT6 microcontroller. If you are updating the firmware or libraries, ensure that all components (HAL, middleware, etc.) are updated and compatible. Debugging interrupt-driven code is also critical, as incorrect interrupt priorities or handler routines can lead to system instability. Using STM32CubeMX and STM32CubeIDE together can help streamline the setup of HAL and peripheral initialization, reducing the risk of common mistakes.
Advanced Troubleshooting and Solutions for STM32G071RBT6
Now that we’ve covered some of the most common and basic troubleshooting issues with the STM32G071RBT6, let’s explore more advanced topics that might help engineers solve complex problems. These problems could be related to memory, power Management , low-level hardware configurations, or advanced software techniques.
2.1 Advanced Power Management Troubleshooting
In embedded systems, power consumption is a critical factor. The STM32G071RBT6 includes advanced power management features such as low-power modes (Sleep, Stop, and Standby) to help reduce power usage in battery-operated devices. However, improper configuration or unexpected power mode transitions can cause instability.
Symptoms:
Microcontroller goes into a low-power mode unexpectedly.
Peripherals become unresponsive after entering low-power mode.
System fails to wake up from low-power states.
Solution:
Ensure that low-power modes are used intentionally and correctly. When configuring low-power modes, be sure to disable unused peripherals and ensure that any wake-up sources (e.g., external interrupts, watchdogs) are properly configured. Use STM32CubeMX to configure these settings easily. If using sleep or stop modes, make sure that the wake-up interrupts are correctly configured, and if using Standby mode, be aware that certain features (e.g., the internal regulator) may be turned off, requiring additional configuration.
2.2 Flash Memory Wear and Lifetime
Flash memory has a limited number of write/erase cycles before it begins to wear out. STM32 microcontrollers, including the STM32G071RBT6, offer wear-leveling and other techniques to extend the lifespan of Flash memory, but improper handling can still cause issues.
Symptoms:
Flash memory corruption.
Data loss after multiple programming cycles.
Slow performance during data writes to Flash.
Solution:
To extend the life of Flash memory, minimize frequent writes to Flash. Instead, use techniques like storing data in RAM and only writing to Flash at necessary intervals. In addition, make use of wear-leveling techniques or use the external Flash for large amounts of data storage, as the internal Flash has limited endurance. Regularly check the integrity of Flash memory using CRC checks or other data verification methods.
2.3 Complex Interrupt Handling
Interrupt handling is one of the most powerful features of the STM32G071RBT6, but it can also cause significant issues if not implemented correctly. Nested interrupts, priority conflicts, and improper vector table setup can all lead to unexpected behavior.
Symptoms:
Missing or delayed interrupts.
Priority inversion, where lower-priority interrupts preempt higher-priority ones.
Stack overflows or hard faults caused by misconfigured interrupt service routines (ISRs).
Solution:
Make sure that interrupt priorities are correctly configured and that interrupt nesting is handled appropriately. Use the STM32’s Nested Vector Interrupt Controller (NVIC) to assign priorities, and be cautious when enabling nested interrupts to avoid priority inversion issues. In addition, ensure that the stack size is large enough to handle deep interrupt nesting without causing overflows.
2.4 Debugging with Advanced Tools
Advanced debugging tools can provide valuable insights when the STM32G071 is not behaving as expected. Tools such as real-time oscilloscopes, logic analyzers, and advanced debuggers can help identify issues that are difficult to diagnose with traditional debugging methods.
Symptoms:
Undefined behavior or crashes that do not reproduce in simple tests.
Real-time communication failures that are not observable through simple debugging.
Complex timing or synchronization issues.
Solution:
Use a logic analyzer to capture data traffic between the STM32G071 and other peripherals. This can help identify issues in SPI, I2C, UART, or CAN communication. For timing-related issues, use an oscilloscope to monitor clock signals or power rails in real-time. These tools can reveal subtle issues, such as timing mismatches, signal integrity problems, or communication timing errors.
2.5 Firmware Update Failures
Updating the firmware on STM32G071 can occasionally result in failure, particularly if there is an issue with the bootloader or the communication interface used for programming (e.g., USART, USB).
Symptoms:
Firmware update hangs or fails.
Bootloader fails to recognize new firmware.
Error messages when using STM32CubeProgrammer.
Solution:
Ensure that the bootloader is correctly configured and that the correct programming interface (e.g., JTAG, SWD, or USART) is used. If the update fails during the bootloader stage, try entering the system memory boot mode by setting the BOOT0 pin high and reset the microcontroller. Additionally, verify that the firmware is correctly formatted and that the STM32CubeProgrammer is up to date.
Conclusion
The STM32G071RBT6 is a versatile and powerful microcontroller, but like any sophisticated system, it requires careful attention to detail in both hardware and software design. By understanding the common issues and knowing how to troubleshoot and resolve them, you can ensure that your projects are reliable and efficient. Whether it's managing power consumption, debugging software, or ensuring stable peripheral communication, the solutions provided in this article can help you overcome common obstacles and optimize the performance of your STM32G071-based systems.
